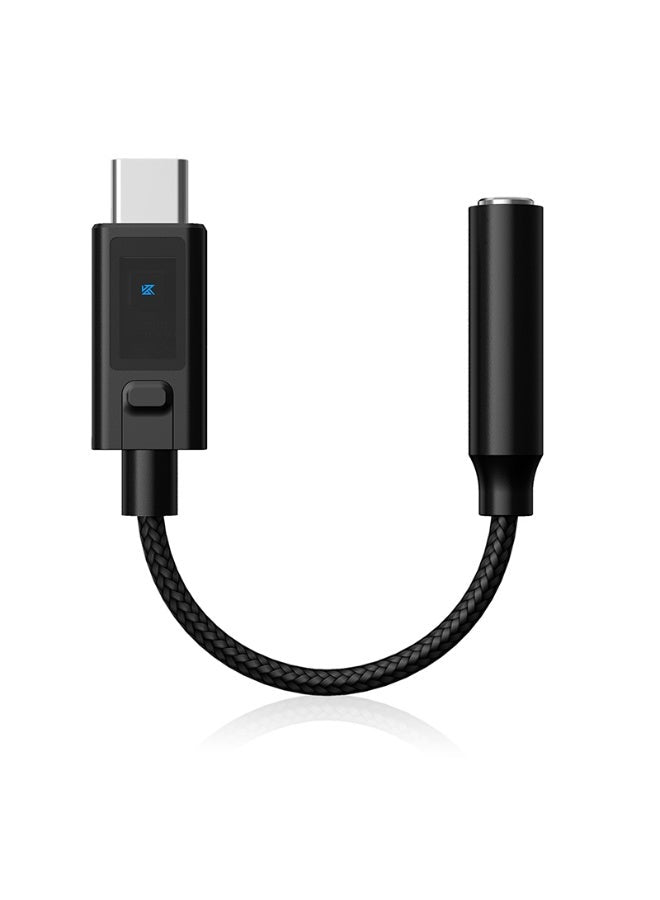

KZ AM02 Type-C to 3.5mm Gaming DAC Adapter and Headphone Amplifier with 4 EQ Modes, 96kHz/24-Bit HiFi Audio Decoding, Footstep and Gunfire Enhancement, Bass Boost, Aluminum Alloy Housing and Kevlar Braided Cable for PUBG Mobile

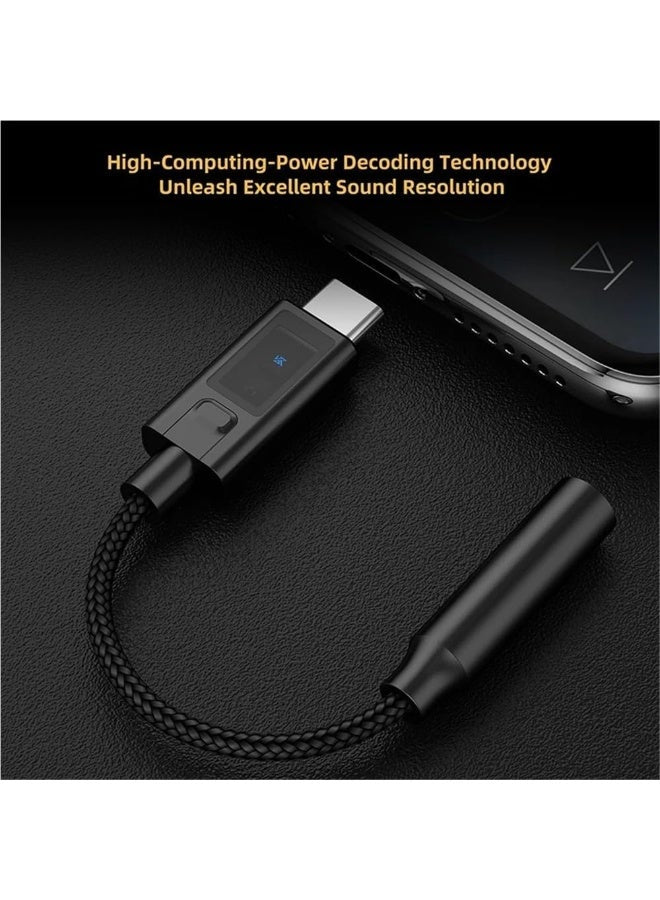

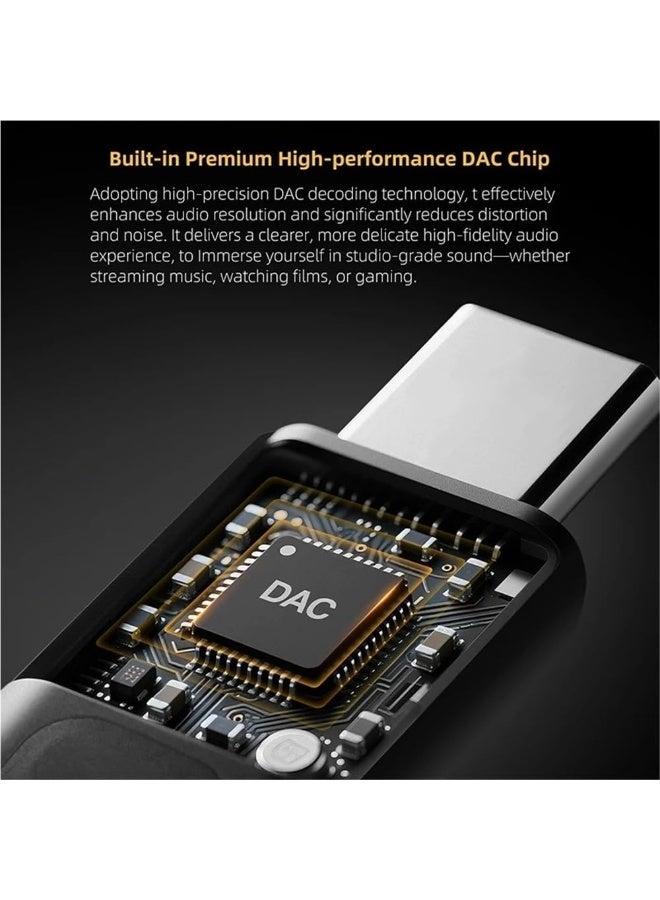

Transform the audio performance of your Type-C device with the KZ AM02 portable digital DAC adapter and headphone amplifier. Designed for gaming, music and entertainment, it converts a USB Type-C connection into a 3.5mm audio output while using a dedicated high-performance DAC chip to improve resolution, reduce distortion and deliver clearer, more detailed HiFi sound.

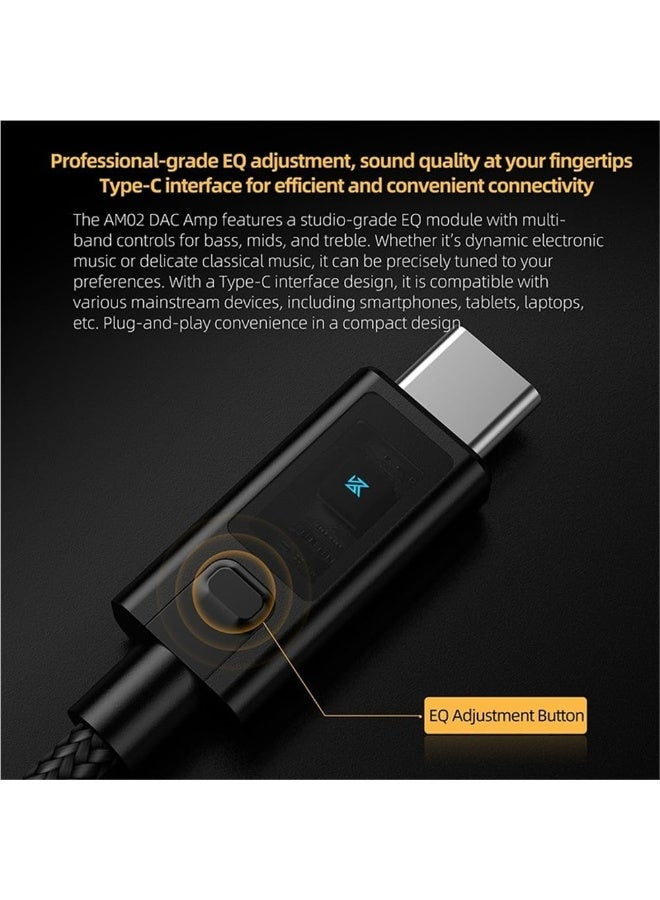

The integrated professional EQ control provides four preset sound modes for different listening scenarios. Music Balanced Mode delivers a natural balance between bass, midrange and treble. Bass Boost Mode produces stronger low frequencies with clear instrumental detail. Standard Gaming Mode enhances gunshots, positional cues and layered battlefield sounds, while Immersive Gaming Mode amplifies footsteps, gunfire and environmental details for a deeper competitive gaming experience.

Use the KZ AM02 with PUBG Mobile, Free Fire, Call of Duty Mobile, Valorant, CS2 and other FPS games to improve the clarity of important sound cues. The gaming modes are designed to reveal footsteps, weapon sounds and environmental details, helping create a more precise and immersive battlefield soundscape.

The high-performance decoding engine supports digital-to-analog audio decoding up to 96kHz/24-bit and analog-to-digital conversion up to 96kHz/24-bit. It offers a signal-to-noise ratio of 105dB, dynamic range of 105dB, frequency response from 10Hz to 44kHz and output power of 27mW at 32Ω for compatible earphones and headphones with an impedance of 16Ω or higher.

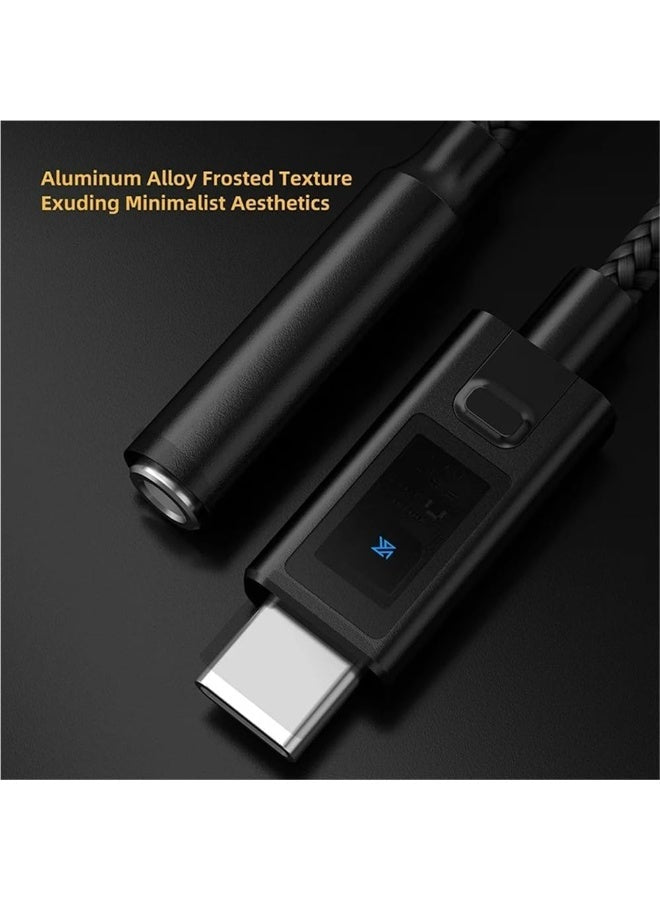

A precision-machined aluminum alloy housing with a frosted finish provides a premium appearance, durability and resistance to fingerprints. The thickened cable core is protected by high-density Kevlar fiber braiding, helping resist bending, pulling, tangling and everyday wear while maintaining stable signal transmission.

The compact plug-and-play design works automatically with OTG-enabled USB-C smartphones, tablets and laptops without requiring complicated setup. It is suitable for compatible RedMagic phones, USB-C iPhones, iPads, Samsung and Android devices, PCs and laptops that support digital audio and OTG through the Type-C port.

Product specifications: USB Type-C input, 3.5mm output, up to 96kHz/24-bit DAC and ADC decoding, 105dB signal-to-noise ratio, 105dB dynamic range, −85dB total harmonic distortion plus noise, 10Hz–44kHz frequency response, 27mW output at 32Ω, impedance compatibility of 16Ω or higher and 115±5mm cable length.

Compatibility note: The connected Type-C device must support OTG and digital USB audio output. Device support may vary by model and operating system.
